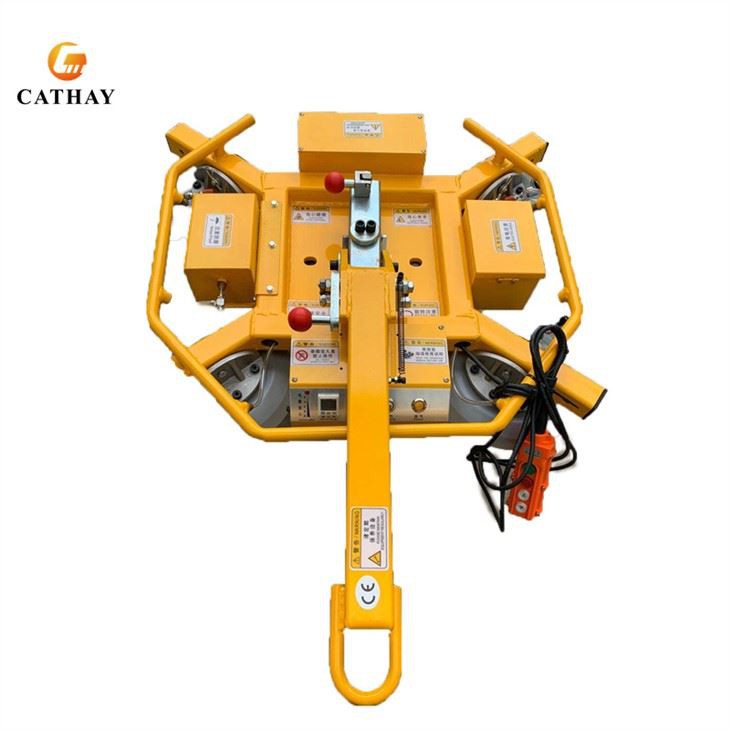

Small Glass Lifting Suction Cups can be rotated 360 degrees in the vertical plane and 90 degrees in the horizontal plane for easy operation. The rack adopts a combined design, and at least four styles can be combined. Thomas DC oil-free vacuum pump from the United States has super suction power and is subjected to high-precision pressure Tested and highly airtight vacuum barrels to ensure safety and reliability.
Model | XC-S400 | XC-S600 | XC-S800 | XC-S1000 | XC-S1200 | |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Diameter | mm | 300 | 300 | 300 | 300 | 300 |
Single Cup Capacity | kg | 100 | 100 | 100 | 100 | 100 |
Rotation | / | 360°manual rotate | ||||
Tilting | / | 90° manual | ||||
Voltage | V | DC12 | ||||
Charger | V | AC220/110 custom | ||||
Weight | kg | 70 | 90 | 100 | 120 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Overall Size | mm | 1230*910*390mm, packed by wooden box | ||||
Gross Weight | kg | 97 | 110 | 123 | 150 | 163 |
Product Details
Advantages:
● The product uses a sealing cover to protect the internal electronic components, which is safe and reliable. The equipment is usually used in conjunction with a crane or hoist for glass installation operations or glass deep processing and handling operations.
● Adjustable boom, at least four shapes can be combined to adapt to different sizes of glass, and can also be customized according to the size of the glass.
● It can be rotated 360 degrees in the vertical plane, flipped 90 degrees in the horizontal plane, electric control of suction and release, manual rotation, easy to operate.
● Using American THOMAS vacuum pump and high-quality maintenance-free battery, it is easy to use, simple to maintain, and no external power supply is required.
● Japan's Panasonic digital vacuum pressure switch, battery indicator, to ensure stable and safe monitoring during use
● The vacuum pressure automatic balancing system ensures that the entire system is maintained at a relatively constant safe pressure value to prevent accidents when in use.
● Equipped with a power failure and pressure maintaining device and an automatic alarm device, which can prolong the working time and make it safer to use.
● Equipped with a 12v battery and a spare battery, which can be replaced at any time to ensure that the project can be completed quickly.
● We accept OEM&ODM services, please tell us the specific parameters of the lifting material, and we will tailor the most suitable equipment for you.
